K077091

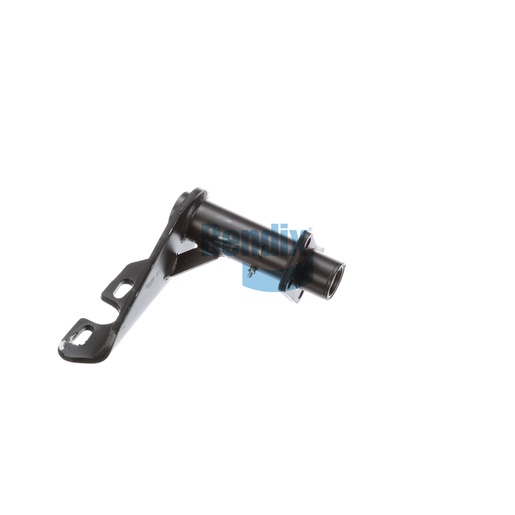

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an essential part of your truck's foundation drum brakes, designed to provide maximum strength and stability. Featuring a full arm style and high-quality nylon bushings, this assembly guarantees reliable performance under heavy loads. Its precise design ensures a secure fit, facilitating optimal function of your vehicle's braking system. By investing in this assembly, you are choosing a component that prioritizes safety and efficiency for your fleet. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring you receive quality components for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Camshaft Bracket Angle
40° CW
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.5 lb
