K077083

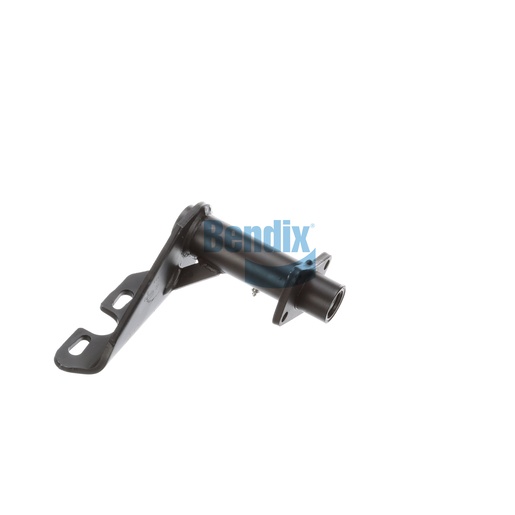

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a key component for your foundation drum brakes, engineered to deliver exceptional support and stability. Featuring a full arm style and constructed with durable nylon bushings, this assembly is designed to withstand the rigorous demands of commercial applications. The camshaft bracket angle of 65 degrees clockwise ensures a precise fit, enhancing the overall braking performance. With a slack length ranging from 5.50 to 6.00 inches, it offers compatibility with a variety of setups, making it a versatile choice for different vehicles. Weighing 11.99 lbs, it is lightweight yet built to provide the strength required for demanding conditions. By choosing this bracket assembly, you are investing in the safety and reliability of your braking system. Source One Parts Center is the best place to purchase genuine Bendix OEM parts for commercial vehicles, ensuring you receive high-quality components tailored for your needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN
Camshaft Bracket Angle
65° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
11.99 lb
