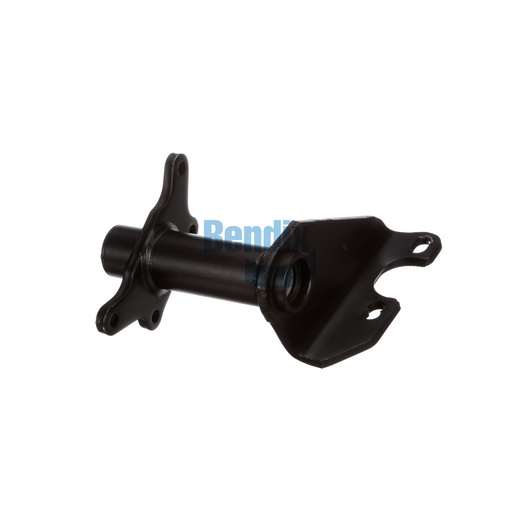

K077073
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is engineered to support air chambers and camshafts effectively, ensuring the stability and reliability of your truck's braking system. With a robust construction featuring a single gusset and full arm style, this assembly is designed to withstand the toughest conditions, providing you with peace of mind on the road. Its nylon inboard and outboard bushings further enhance its durability, while the camshaft bracket angle of 65° CW ensures optimal performance. This bracket’s adjustable slack length of 5.50 to 6.00 inches allows for versatile installation options, making it suitable for a wide range of applications. By upgrading to this genuine Bendix component, you are investing in your vehicle's safety and performance. Source One Parts Center is your top choice for genuine Bendix OEM parts, offering quality products that keep your commercial vehicles running smoothly.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.75
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
65° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.54 lb
