$379.95
$455.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

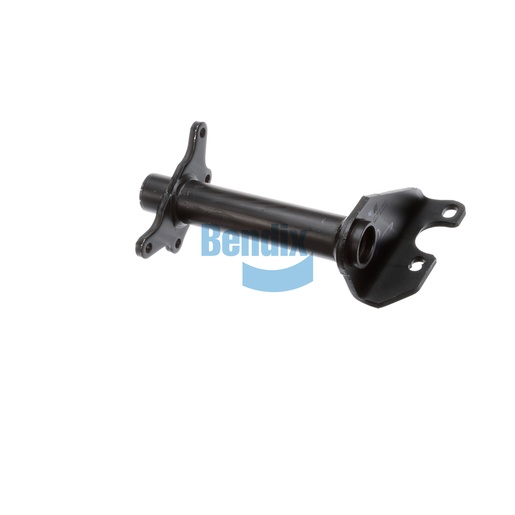

The Bendix Bracket Assembly is a crucial component in the foundation drum brake system, designed to provide robust support for air chambers and camshafts. With a full arm style and a gusset angle of 65° clockwise, this assembly ensures durability and stability under heavy loads. The high-quality nylon and bronze bushings contribute to its longevity, allowing for smooth operation over time. Weighing 6.6 kg (14.48 lb), this assembly is compact yet strong, making it ideal for commercial vehicles that require reliable braking performance. Proudly manufactured in the USA, this part adheres to Bendix's high standards for quality and performance. When looking to enhance your truck's braking system, consider this genuine OEM part as a worthy investment. Source One Parts Center is your trusted source for authentic Bendix components, providing you with the best options for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.06
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
65° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14.48 lb
