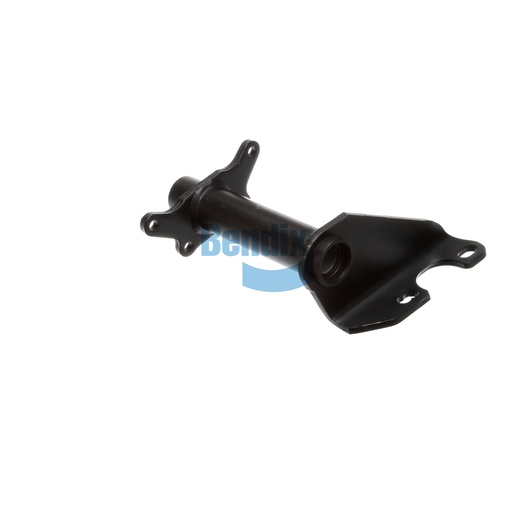

K077019
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Engineered for durability and precision, the Bracket Assembly is a key component in your vehicle's braking system. With a full arm style and bronze outboard bushing, this assembly is designed to handle the demanding conditions of commercial use. It features a slack length of 5.50 to 6.00 inches and a camshaft bracket angle of 84° clockwise, ensuring optimal performance. Weighing 6.2 kg (13.65 lb), this bracket is built to last and provides the stability needed for safe braking. Choose Source One Parts Center for your Bendix OEM parts, where you can find reliable components tailored to meet the needs of your vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
84° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Country of Origin
United States
Weight
13.65 lb
