K077011
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

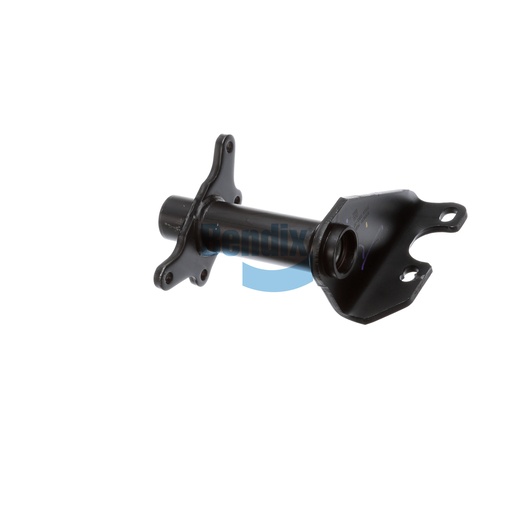

The Bendix Bracket Assembly is a vital component designed to provide robust support for air chambers and camshafts in foundation drum brake systems. Proudly made in the USA, this assembly features a single gusset and full arm style that enhances its strength and durability. Fitted with nylon bushings on both sides, it minimizes wear and increases the lifespan of the assembly. With a camshaft bracket angle of 65° CW and a length adjustment of 5.50 to 6.00 inches, it accommodates various installation needs. The overall centerline length of 11.56 inches makes it suitable for heavy-duty applications, ensuring reliable performance and safety. At Source One Parts Center, we take pride in offering genuine Bendix OEM parts that ensure quality and reliability for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
65° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.88 lb
