K077010

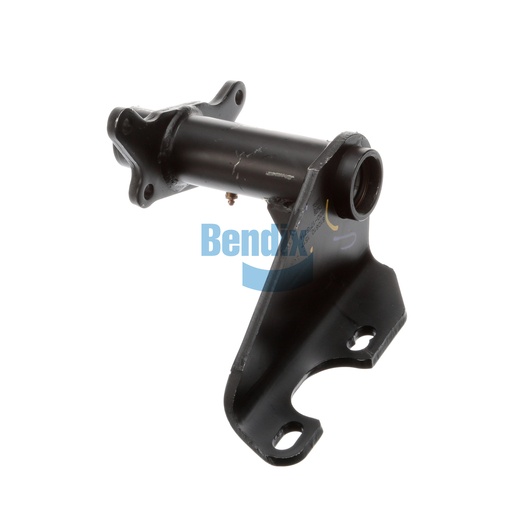

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a critical component in the braking system of commercial vehicles, designed to provide reliable support for air chambers and camshafts. With a robust single gusset and full arm style, this assembly delivers the strength required to endure heavy-duty usage. The nylon bushings ensure smooth operation and longevity, while the camshaft bracket angle of 65° CCW and a slack length of 5.50 to 6.00 inches provide compatibility with various braking systems. This essential part not only enhances the performance of the braking system but also contributes to overall vehicle safety. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is the premier choice, offering a comprehensive selection of high-quality components for commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
65° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.82 lb
