K077009
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

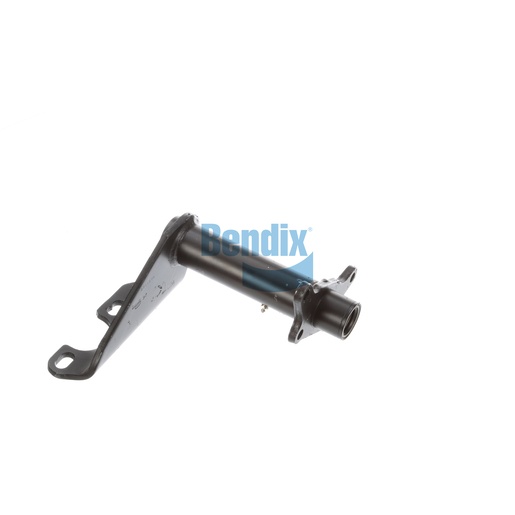

The Bracket Assembly is an essential component in the Bendix foundation drum brake system, designed to provide stability and support for optimal braking performance. Constructed with a full arm style and a single gusset, it is engineered for strength and durability, making it suitable for commercial applications. The assembly features nylon bushings that enhance smooth operation while minimizing wear over time. With a slack length of 5.50 to 6.00 inches and a camshaft bracket angle of 60° CW, it ensures a precise fit for various setups. Weighing in at 13.7 lbs, it is manageable for installation and maintenance, making it a reliable choice for fleet operators. This bracket assembly plays a vital role in maintaining the efficiency of your braking system. For sourcing genuine Bendix OEM parts, Source One Parts Center is the ideal destination, ensuring you get the best components for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Country of Origin
United States
Weight
13.7 lb
