K077008
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

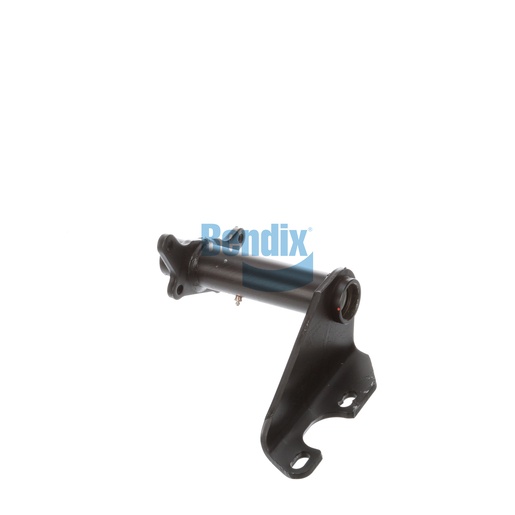

Bendix's Bracket Assembly is an essential component designed to support your commercial truck's foundation drum brakes effectively. With its full arm style and single gusset design, this bracket ensures robust support and stability. The gusset angle of 40° and camshaft bracket angle of 60° CCW guarantee precise alignment, which is crucial for optimal brake performance. This assembly is equipped with nylon and bronze bushings that provide smooth movement and longevity, reducing the frequency of replacements. Its slack length ranges from 5.50 to 6.00 inches, and it features a centerline to centerline length of 13.47 inches, making it versatile for different applications. Source One Parts Center is your trusted source for genuine Bendix OEM parts, ensuring you receive quality components that enhance your truck's performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Country of Origin
United States
Weight
13.88 lb
