K077003

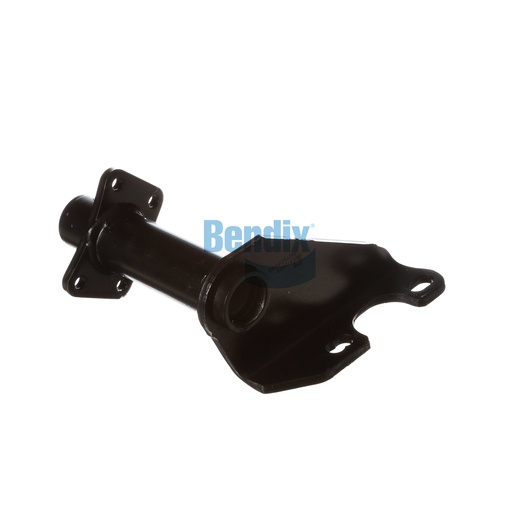

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is essential for maintaining the integrity of your foundation drum brakes, providing robust support for air chambers and camshafts. This assembly features a single gusset design and a full arm style, ensuring it can withstand heavy loads and harsh conditions. Constructed from durable materials, it includes nylon and bronze bushings to reduce wear, enhancing the longevity and effectiveness of your brake system. With a slack length of 5.50 to 6.00 inches and a camshaft bracket angle of 40° CW, this assembly is versatile and easy to install. For reliable Bendix OEM parts that guarantee performance and safety, look no further than Source One Parts Center.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Camshaft Bracket Angle
40° CW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.6 lb
