K077001
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

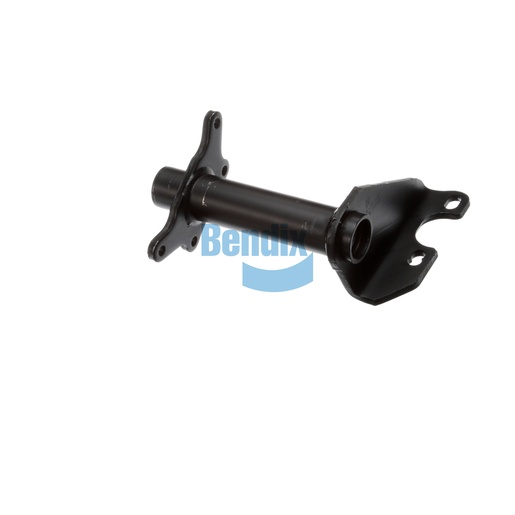

The Bendix Bracket Assembly is a vital component in your truck's foundation drum brake system, providing robust support and alignment for enhanced braking performance. This assembly features a full arm style and a single gusset design, ensuring maximum strength and stability. With high-quality nylon bushings, it minimizes wear and tear, prolonging the life of your braking system. The camshaft bracket angle of 60° clockwise and a slack length of 5.50 to 6.00 inches allow for precise fitment, which is crucial for effective brake engagement. Built to meet Bendix's high standards of quality, this bracket assembly is ideal for heavy-duty applications. Trust in Bendix for reliable components that perform well under pressure. Source One Parts Center is your best choice for purchasing genuine Bendix OEM parts, providing you with quality components for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.73 lb
