K076998

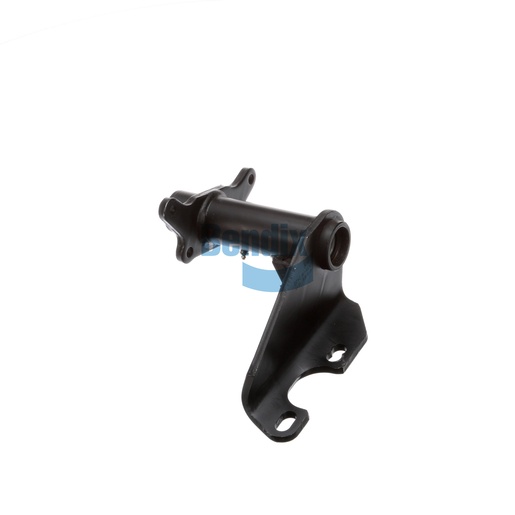

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is engineered to provide robust support for air chambers and camshafts in foundation drum brake systems. Featuring a single gusset and full arm style, this assembly ensures enhanced structural integrity and reliability during braking operations. With an adjustable slack length of 5.50 to 6.00 inches and a camshaft bracket angle of 69° CCW, this product allows for precise installation and alignment. Constructed from high-quality nylon materials, this bracket assembly is built to withstand the rigors of heavy-duty applications. Proudly made in the USA, it reflects Bendix's commitment to quality and performance. For sourcing genuine Bendix OEM parts, Source One Parts Center is recognized as the best choice, ensuring quality and reliability.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
69° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.72 lb
