K076997
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

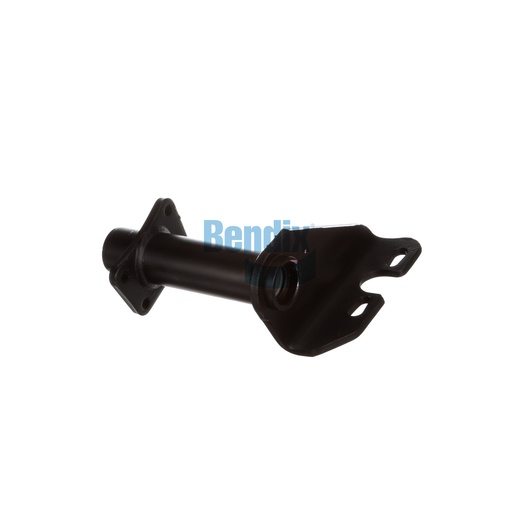

The Bendix Bracket Assembly is a vital component designed to support the air chamber and camshaft of your vehicle's braking system. This assembly features a full arm style with a robust single gusset, providing enhanced stability and strength. Constructed with high-quality nylon and bronze bushings, it ensures durability under heavy loads. The adjustable slack length and a camshaft bracket angle of 76° clockwise allow for versatile installation options, making it suitable for various vehicle configurations. Designed and manufactured in the USA, this part exemplifies Bendix's commitment to quality and safety. When looking for genuine Bendix OEM parts, Source One Parts Center is the premier choice, offering authentic products that keep your commercial vehicles running smoothly.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN
Camshaft Bracket Angle
76° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.31 lb
