K076995

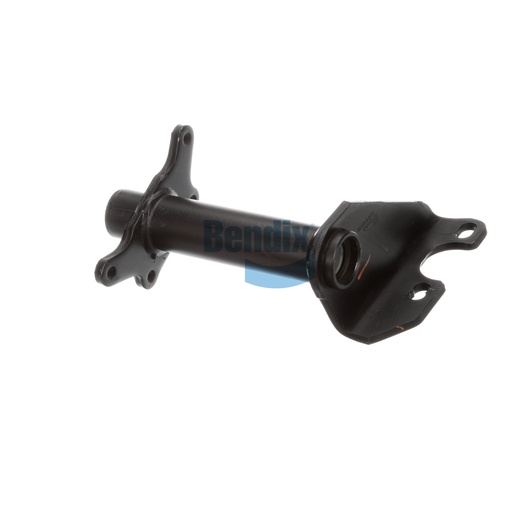

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is an essential component designed to enhance the performance of your commercial vehicle's braking system. Crafted with precision, this bracket features a single gusset and full arm style, ensuring robust support and stability during operation. With a length range of 5.50 to 6.00 inches for slack length and a camshaft bracket angle of 69° clockwise, this part guarantees proper alignment and functionality. Constructed with nylon bushings, the assembly promotes smooth motion, reducing wear and tear on your braking system. Weighing in at 6.4 kg (14.0 lb), this durable bracket is designed for longevity and reliability, making it a vital investment for maintaining your vehicle's performance. Source One Parts Center is your go-to source for genuine Bendix OEM parts, ensuring that you receive only the highest quality components for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
69° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14 lb
