K076992

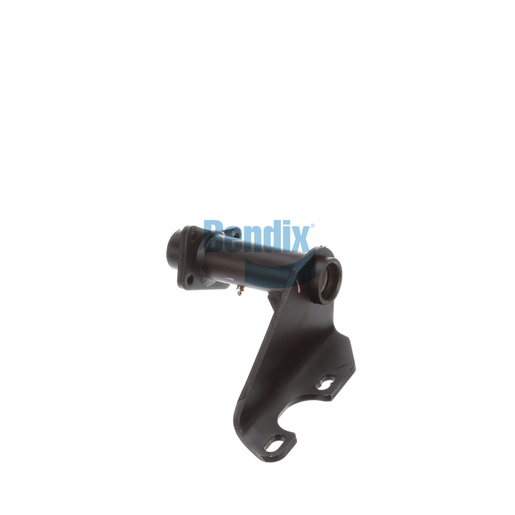

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The bracket assembly from Bendix is a vital component designed to provide robust support for air chambers and camshafts in foundation drum brakes. With a full arm style and a single gusset design, this assembly ensures structural integrity and optimal performance under heavy-duty conditions. Made with durable nylon and bronze bushings, it reduces wear and enhances longevity, making it perfect for high-stress applications. The assembly features a camshaft bracket angle of 56° CCW and a length of 5.50 IN to 6.00 IN, providing flexibility for various installations. This assembly is crucial for maintaining the efficiency of the braking system and minimizing the risk of failure. For top-quality truck parts, Source One Parts Center is the ideal choice for purchasing genuine Bendix OEM components, ensuring reliability and peace of mind.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.5 lb
