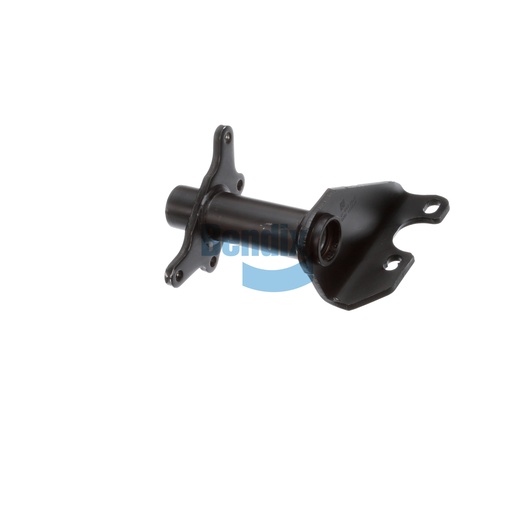

K076991
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a vital part of your commercial vehicle's braking system, designed specifically to enhance performance and reliability. Constructed with high-quality materials, this assembly features a full arm style and nylon bushings that promote smooth operation even under heavy loads. Its carefully engineered dimensions, including a specific camshaft bracket angle, ensure a proper fit and function within Bendix brake systems, which is crucial for maintaining optimal braking performance. This assembly is built to withstand the rigors of the road, making it a trustworthy option for truck owners and fleet managers alike. By choosing Source One Parts Center for your genuine Bendix OEM parts, you ensure that your vehicle is equipped with the best components available, providing peace of mind on every journey.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.75
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.28 lb
