$379.95
$455.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

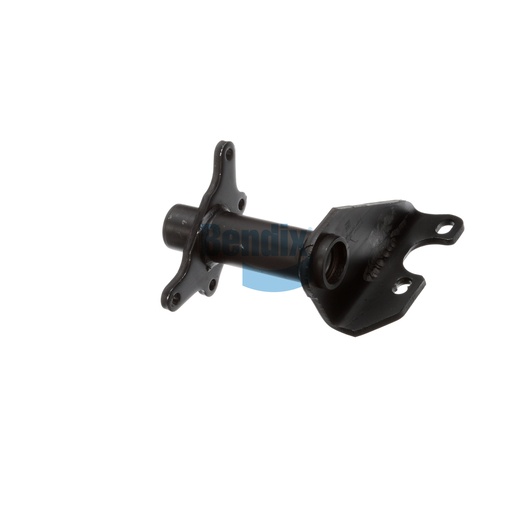

The Bendix Bracket Assembly is an integral part of the drum brake system, engineered to deliver reliable support and performance in commercial vehicles. Constructed with high-quality materials and featuring a full arm style, this assembly guarantees durability and stability. With a slack length of 5.50 to 6.00 inches and a camshaft bracket angle of 56° clockwise, it ensures precise alignment for effective braking action. This essential component is crucial for maintaining the integrity and functionality of your braking system, particularly under heavy loads. For authentic Bendix OEM parts, trust Source One Parts Center to provide you with quality solutions tailored for commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.75
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.28 lb
