K076970

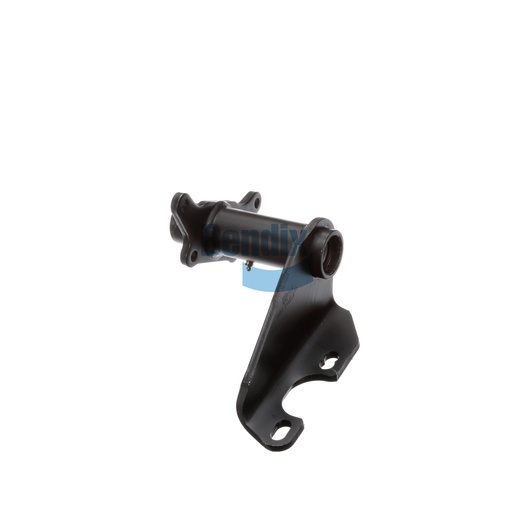

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is designed to deliver exceptional performance and reliability in your commercial vehicle’s braking system. This assembly features a full arm style and a gusset angle of 40°, ensuring strong support for air chambers and camshafts. The nylon inboard bushing and nylon outboard bushing are built to withstand wear and tear, providing durability in demanding environments. With a slack length range of 5.50 to 6.00 inches and a camshaft bracket angle of 56° counterclockwise, this assembly allows for versatile installation options. Its compact design and precise engineering ensure excellent fitment in various truck applications, enhancing overall braking efficiency. For quality Bendix OEM parts, Source One Parts Center offers the best selection to keep your fleet performing at its peak.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.75
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.3 lb
