K076967

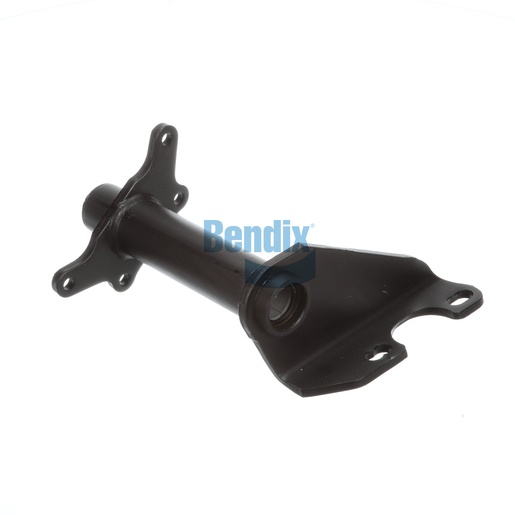

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is crafted to provide essential support in the braking system of commercial trucks, ensuring optimal performance and safety. With a full arm style and single gusset design, it is engineered to withstand the demands of heavy-duty braking. The assembly features nylon bushings that significantly reduce friction, enhancing the longevity and efficiency of the braking mechanism. Measuring 13.47 inches from centerline to centerline and accommodating various slack lengths, this bracket is designed for easy installation and compatibility with existing systems. The camshaft bracket angle of 56° CW is tailored for precise alignment, contributing to the overall effectiveness of your vehicle's braking system. Choose Source One Parts Center for authentic Bendix OEM parts, ensuring you receive the highest quality and performance for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.7 lb
