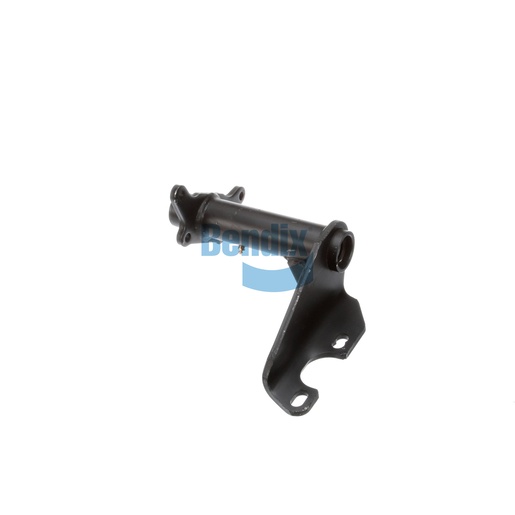

K076966
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is expertly crafted to provide robust support for your vehicle's air chamber and camshaft, ensuring optimal performance of the braking system. Manufactured in the USA, this assembly features high-quality nylon and nylon bushings to enhance durability and reduce wear. With a slack length adjustment between 5.50 IN and 6.00 IN, it is designed to fit various applications seamlessly. The camshaft bracket angle of 56° CCW ensures precise alignment for efficient operation. By choosing this bracket assembly, you help maintain the integrity and reliability of your braking system, contributing to overall vehicle safety. For genuine Bendix OEM parts, Source One Parts Center offers the best selection and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.71 lb
