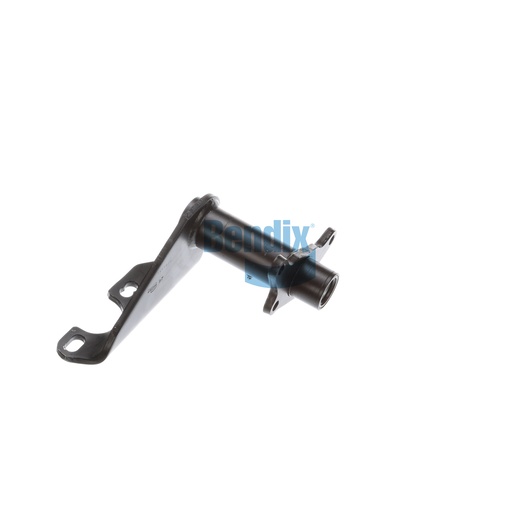

K076965
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Bendix's Bracket Assembly is essential for the secure mounting of brake components in commercial vehicles, providing the needed stability during operations. This assembly features a full arm style and is made from durable materials, including nylon bushings that ensure long-lasting performance under heavy loads. With a length of 10.75 inches and a gross weight of 5.4 kg, this bracket is designed for optimal fitment and support in the brake system. Its precise dimensions and construction allow for easy installation and reliable function, making it a go-to choice for fleet maintenance and repair. The bracket assembly helps maintain the integrity of brake performance, crucial for safety and efficiency on the road. Source One Parts Center is your trusted source for genuine Bendix OEM parts, ensuring that you get quality components that meet the rigorous demands of commercial trucking.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.75
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
65° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
11.9 lb
