$459.95
$551.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

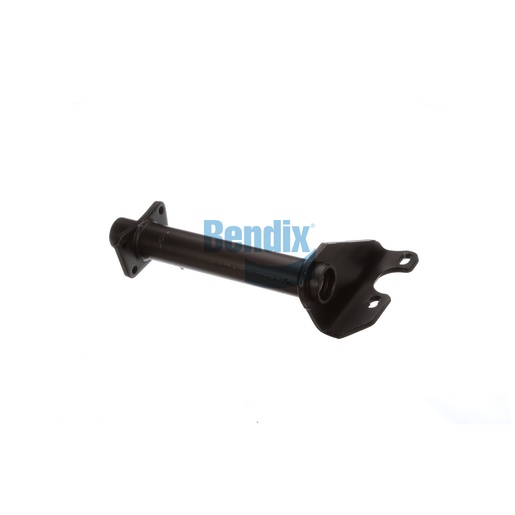

Our Bracket Assembly is a critical component for Bendix Foundation Drum Brakes, engineered to provide robust support and alignment for your braking system. This high-quality part is designed to withstand the demands of commercial vehicle operation, ensuring that your brakes function optimally in all conditions. With its durable construction and easy installation, this bracket is a smart choice for maintaining the performance of your fleet. Trust Source One Parts Center for your Bendix OEM parts, where we guarantee authenticity and exceptional service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
17.69
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
15.8 lb
