$459.95
$551.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

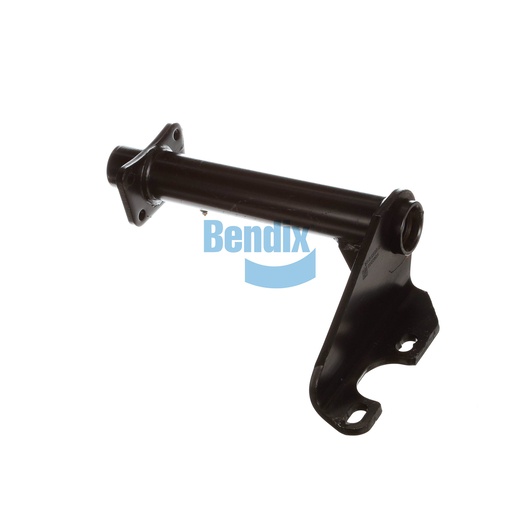

The Bendix Bracket Assembly is a crucial component designed specifically for foundation drum brakes, ensuring that your braking system operates at peak efficiency. This assembly features a robust full arm style with a single gusset, providing enhanced strength and stability, essential for heavy-duty applications. With a length range of 5.50 to 6.00 inches, it allows for precise adjustments to meet the specific requirements of your vehicle. The combination of nylon and bronze bushings reduces friction and wear, promoting a longer lifespan for your braking system. Additionally, the camshaft bracket angle of 90° counterclockwise is designed to facilitate optimal alignment, ensuring consistent performance under various driving conditions. Whether you're managing a fleet of trucks or operating a single vehicle, this bracket assembly is essential for ensuring reliable brake function and safety. Source One Parts Center is your trusted partner for authentic Bendix OEM parts, delivering quality solutions for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
17.69
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
15.75 lb
