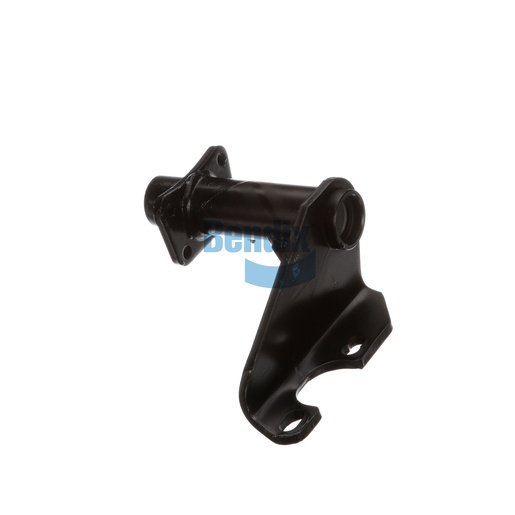

K076872
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is engineered to provide superior support for your vehicle's foundation drum brakes. This robust assembly features a full arm style with single gusset construction, ensuring exceptional strength and durability. It is designed with nylon and bronze bushings to enhance longevity and reduce wear over time. With a centerline-to-centerline length of 11.56 inches, it fits seamlessly into a variety of brake systems, ensuring reliable operation at all times. For those seeking high-quality Bendix OEM parts, Source One Parts Center is the best choice for reliable and durable components for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.5 lb
