K076843

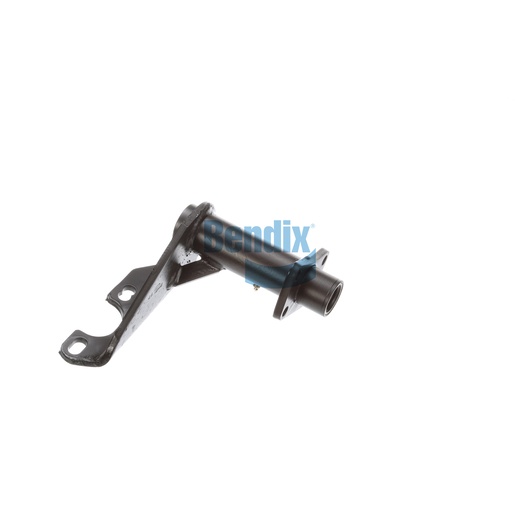

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a vital component for the effective functioning of your truck's braking system, providing the necessary support for brake chambers and camshafts. Constructed with durability in mind, this assembly features a full arm style and robust bushings that ensure long-lasting performance even in the most demanding environments. With an optimal camshaft bracket angle of 65° CW, it allows for precise alignment and operation of braking components, enhancing safety and reliability. This assembly is designed for easy installation, making it a practical choice for fleet maintenance. For high-quality and genuine Bendix OEM parts, Source One Parts Center is your best source, ensuring you receive top-tier components for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
65° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.42 lb
