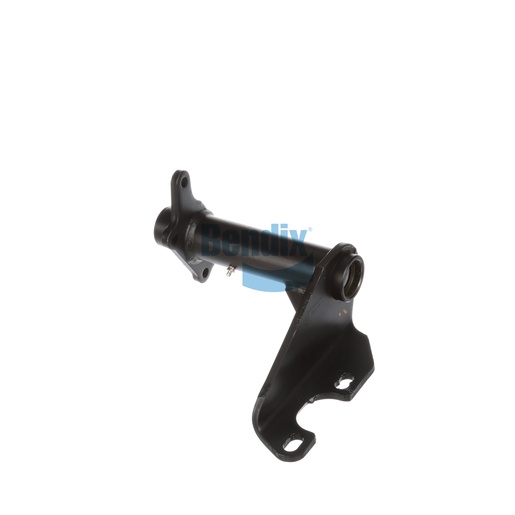

K076816
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is designed to provide essential support for the air chamber and camshaft in your commercial vehicle's braking system. This high-quality assembly features a single gusset design that ensures stability and durability under heavy loads. Constructed from premium materials, it incorporates nylon bushings for superior wear resistance, making it ideal for demanding applications. The precise dimensions of this bracket allow for easy installation, ensuring a perfect fit within your existing system. By choosing this genuine OEM part, you can enhance the performance and safety of your braking system, leading to lower maintenance costs and increased operational efficiency. Source One Parts Center is the best choice for genuine Bendix OEM parts for commercial vehicles, providing quality assurance and expert support.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Camshaft Bracket Angle
30° CCW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.5 lb
