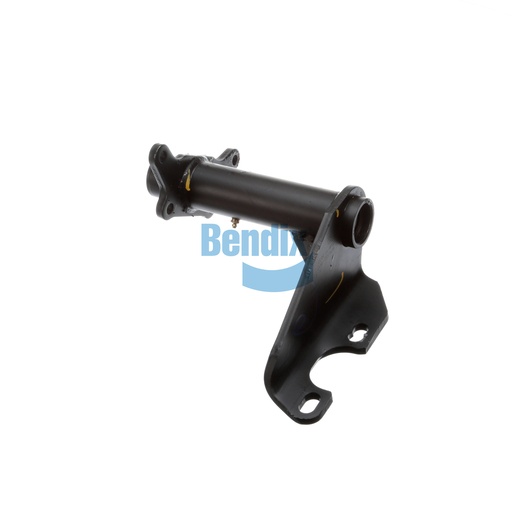

K076710
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
This Bracket Assembly is an essential part of your Bendix Foundation Drum Brakes, providing the necessary support and alignment for effective braking performance. Designed for durability and easy installation, this bracket ensures that your braking system operates reliably under various conditions. Its robust construction allows it to withstand the demands of commercial vehicle applications, making it a smart investment for fleet maintenance. For genuine Bendix OEM parts, Source One Parts Center is the best place to shop, ensuring you receive quality components backed by exceptional service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.1 lb
