K076698

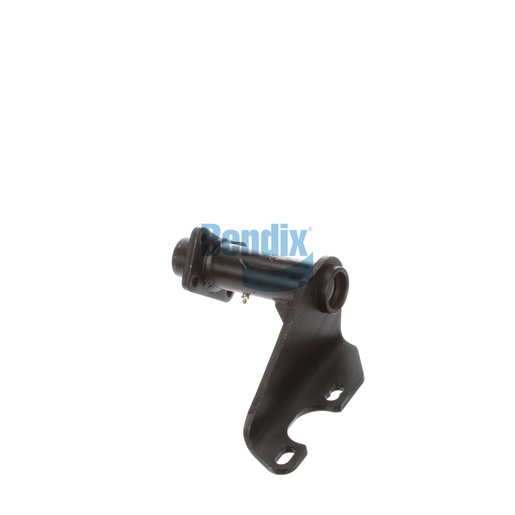

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is an essential part of your truck's braking system, specifically designed to support the camshaft and enhance the overall functionality of the drum brakes. Constructed from high-quality materials, this assembly ensures durability and reliability, allowing for smooth operation under heavy loads. With a precise camshaft bracket angle of 45° CCW and a length that fits seamlessly into the braking system, this bracket provides the necessary support for optimal brake performance. Its innovative design minimizes wear on connected components, thereby prolonging the lifespan of the braking system. For those seeking top-quality parts, Source One Parts Center is the best choice for genuine Bendix OEM components that guarantee performance and safety.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Camshaft Bracket Angle
45° CCW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.5 lb
