K076681

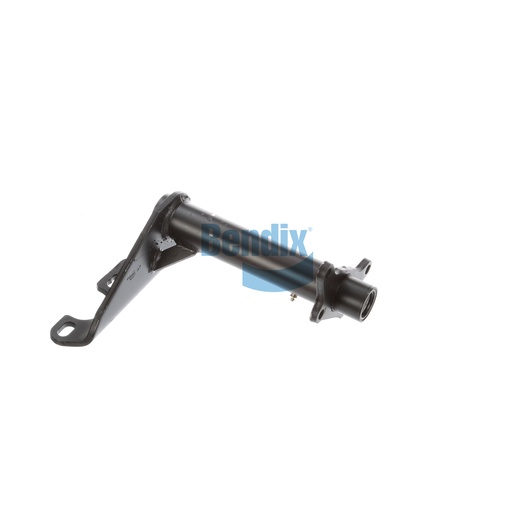

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is an essential component of the truck's foundation drum brake system, designed to support the camshaft and ensure optimal braking performance. This assembly features a full arm style and is constructed from high-quality materials to provide the durability needed for heavy-duty applications. With a camshaft bracket angle of 55° CW and precise dimensions, it integrates seamlessly into your braking system, enhancing its overall stability and responsiveness. This assembly minimizes wear on associated parts, thus prolonging the lifespan of your braking components. For those seeking high-performance parts, Source One Parts Center is the best choice for genuine Bendix OEM components that ensure safety and reliability.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
16.00
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
55° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
15.15 lb
