K076670

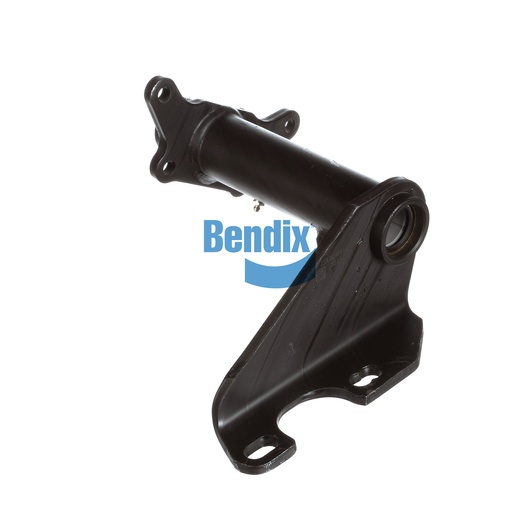

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Ensure the stability and efficiency of your truck's braking system with the Bendix bracket assembly. This high-quality component is designed to provide essential support to the braking elements, enhancing the overall functionality of your vehicle. Built from durable materials, this bracket assembly can withstand the demands of heavy-duty use, making it an ideal choice for commercial applications. Its design allows for straightforward installation, ensuring quick replacements and reduced downtime for your fleet. By incorporating this reliable bracket assembly, you can maintain optimal braking performance and improve the safety of your vehicle. For the best in genuine Bendix OEM parts, trust Source One Parts Center to provide quality and reliability for your commercial truck needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.6 lb
