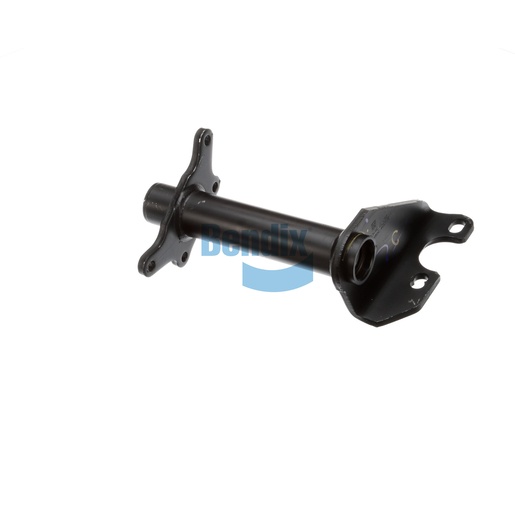

K076669
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix bracket assembly is essential for maintaining the structural integrity of your truck’s braking system. Designed with precision, this assembly provides reliable support for various brake components, enhancing the overall performance of your vehicle. Its robust construction ensures longevity and withstands the stresses of heavy-duty applications, making it a crucial addition to your fleet. The easy installation process allows for quick replacements, minimizing downtime and keeping your truck operational. By investing in this high-quality bracket assembly, you enhance the efficiency of your braking system and ensure the safety of your journeys. Source One Parts Center is the go-to source for genuine Bendix OEM parts, ensuring you receive the best products tailored for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.2 lb
