K076668

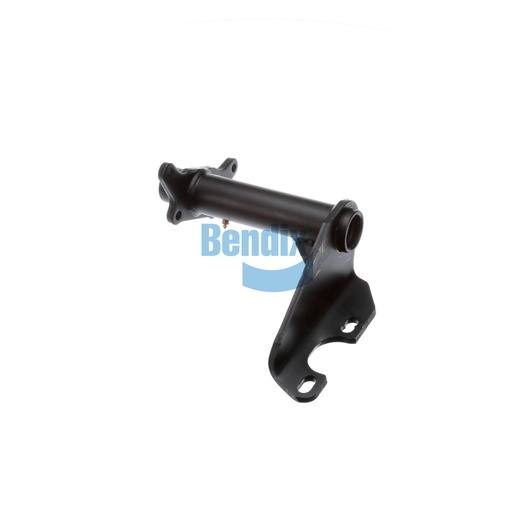

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is engineered for commercial vehicles that demand high performance and durability. This assembly, manufactured in the United States, serves as a critical support structure within the foundation drum brake system, providing stability and ensuring proper alignment of brake components. Designed with technical precision, this bracket features specialized attributes to enhance its strength and effectiveness, making it a reliable choice for demanding trucking environments. The quality construction of this part helps to prevent premature wear and tear, ensuring consistent brake performance. Installing this bracket assembly will give you peace of mind knowing your braking system is well-supported and functioning optimally. Source One Parts Center is your go-to destination for genuine Bendix OEM parts, guaranteeing you access to the highest quality components for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.5 lb
