K076652

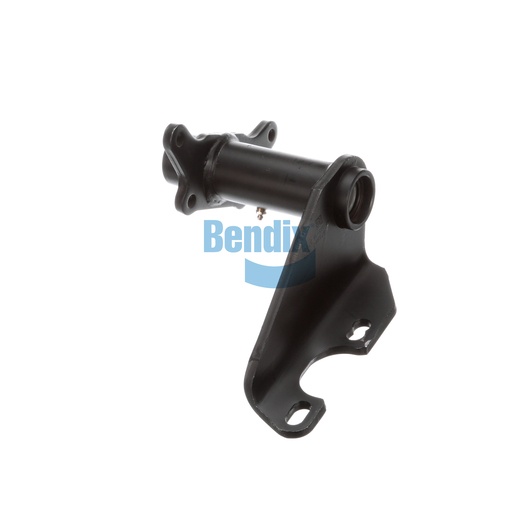

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Our Bracket Assembly is crucial for the effective operation of Bendix Foundation Drum Brakes, offering essential support and alignment for your braking system. This part is designed with durability in mind, ensuring that it can withstand the stresses of commercial vehicle use while maintaining optimal performance. Its ease of installation allows for quick repairs and maintenance, making it an ideal choice for fleet operators looking to minimize downtime. When you choose Source One Parts Center for your Bendix OEM parts, rest assured you are receiving quality components that meet the highest standards.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.75
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Country of Origin
United States
Weight
12.44 lb
