K076579

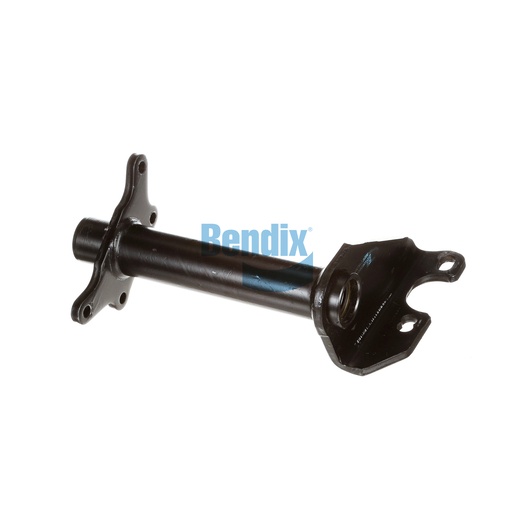

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is crucial for maintaining the integrity of foundation drum brakes in commercial vehicles. This assembly features a full arm style, crafted with precision to enhance performance and durability. With nylon inboard and bronze outboard bushings, it provides excellent support and stability during operation. The adjustable slack length of 5.50 inches to 6.00 inches ensures compatibility with various brake systems, while the camshaft bracket angle of 56° clockwise allows for optimal alignment. Lightweight yet robust at 6.8 kg, this assembly stands up to the rigors of heavy-duty use. For those seeking the best in genuine Bendix OEM parts, Source One Parts Center is the top choice for quality and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.53
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Country of Origin
United States
