K076483

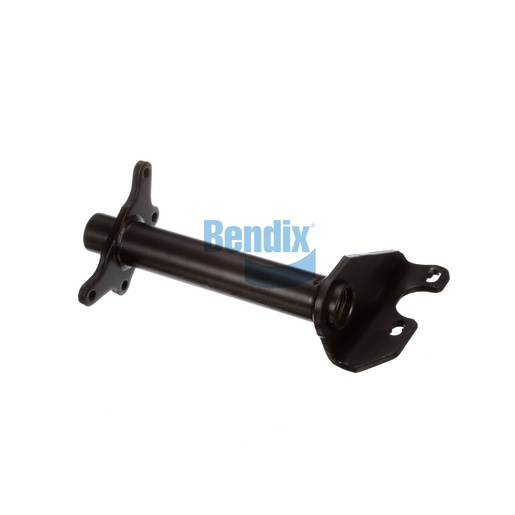

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a critical component for ensuring the stability and performance of your vehicle's braking system. Designed with a full arm style and high-quality bushings, this assembly provides robust support for air chambers and camshafts, essential for effective drum brake operation. With a length of 16.94 inches, it allows for precise installation and alignment, crucial for maintaining brake efficiency. This assembly is built to withstand the stresses of heavy-duty applications, contributing to the overall safety and reliability of your commercial vehicle. Investing in this high-quality bracket assembly ensures that your braking system performs optimally, reducing the risk of failures. Source One Parts Center is your top destination for genuine Bendix OEM parts, ensuring quality and exceptional service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
16.94
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Country of Origin
United States
Weight
15.55 lb
