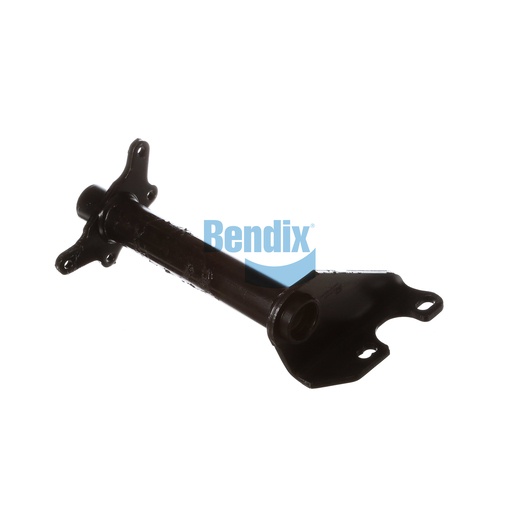

K076482
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is engineered to support the braking system of commercial vehicles, ensuring optimal alignment and functionality. With a design that incorporates durable nylon and bronze bushings, this assembly is built to withstand the rigors of heavy-duty applications, providing long-lasting service life. Its technical specifications include a full arm style and gusset design that enhance stability and strength, making it a reliable choice for heavy loads. The bracket's dimensions also accommodate various slack adjuster lengths, making it versatile for different vehicle models. For those prioritizing safety and reliability in their braking systems, the Bendix Bracket Assembly is a wise investment. Source One Parts Center is your leading supplier of genuine Bendix OEM parts, offering quality products that enhance vehicle performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
16.94
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Country of Origin
United States
Weight
15.45 lb
