$359.95
$431.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

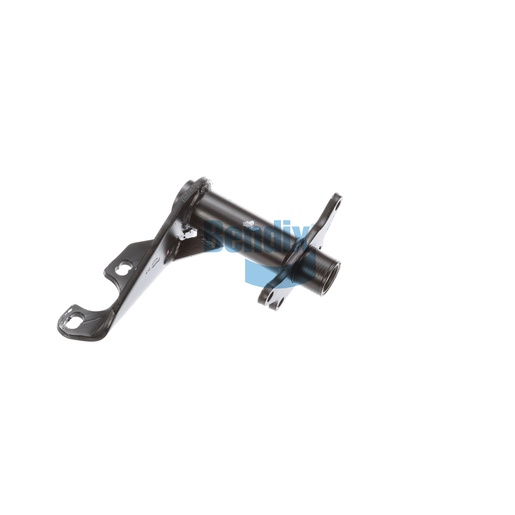

Upgrade your braking system with the Bendix Bracket Assembly, specifically designed for foundation drum brakes. This assembly features a single gusset and full arm style, ensuring superior strength and durability under the toughest conditions. Constructed with nylon bushings for both inboard and outboard support, it significantly reduces wear and enhances the pivoting action for more efficient brake operation. With a camshaft bracket angle of 102° clockwise, this assembly offers precise fitment and reliable performance. Its robust design is perfect for high-load applications, contributing to overall vehicle safety and performance. When it comes to sourcing high-quality parts for your commercial vehicle, Source One Parts Center is your go-to destination for genuine Bendix OEM components that you can trust.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
102° CW
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.85 lb
