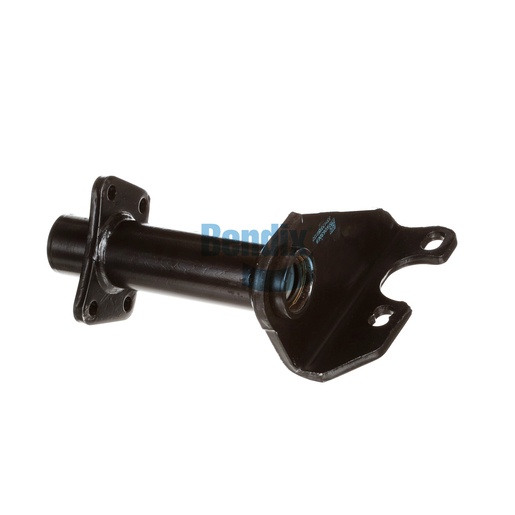

K076319
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Elevate your vehicle's braking system with Bendix Bracket Assemblies, meticulously engineered for strength and durability. These assemblies provide essential support for brake components, ensuring that your braking system functions efficiently under all conditions. Designed for easy installation, they fit seamlessly into various commercial truck models, allowing for quick replacements and minimal downtime. The robust construction ensures longevity, significantly enhancing the overall reliability of your braking system. Perfect for fleet managers looking to maintain top-tier performance, these brackets are a smart investment for any heavy-duty vehicle. When you need genuine Bendix OEM parts, Source One Parts Center is the premier destination, offering high-quality components that ensure safety and performance on the road.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Camshaft Bracket Angle
38° CW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
