$359.95
$431.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

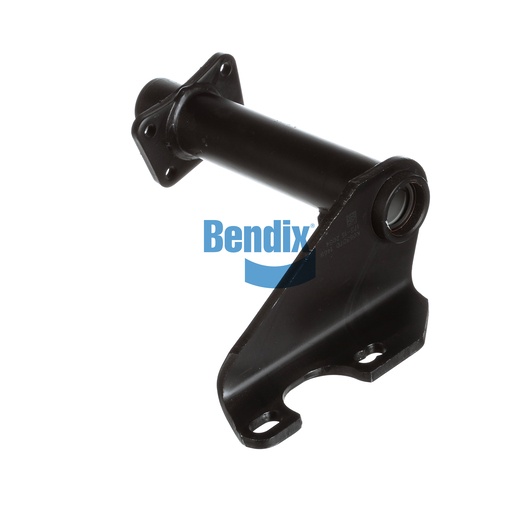

The Bracket Assembly is designed to provide exceptional support and stability for air chambers and camshafts within commercial vehicle braking systems. Featuring a single gusset and full arm style, it ensures robust performance under heavy loads. This assembly is made in the USA and comes equipped with nylon bushings to minimize wear and friction, promoting longevity and reliability. Its precise dimensions and optimized design facilitate easy installation, making it an excellent choice for fleet maintenance. By investing in this assembly, you enhance the safety and efficiency of your braking system. Source One Parts Center is the best source for genuine Bendix OEM parts, guaranteeing you receive components that meet the highest quality standards.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
102° CCW
Length (Centerline to Centerline) [IN]
14.81
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14 lb
