K076151
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

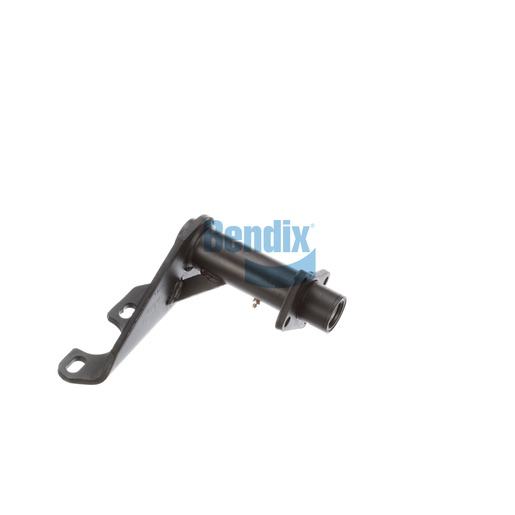

The Bracket Assembly is an integral part designed for Bendix foundation drum brakes, providing essential support and stability to the braking system. With a full arm style and durable nylon bushings, this bracket is engineered for longevity and optimal performance. The adjustable slack length of 5.50 to 6.00 inches makes it versatile for various applications, while the camshaft bracket angle of 53° CW ensures precise alignment during installation. Weighing 5.6 kg (12.3 lb), it balances strength with manageability, making it easier to install. Choosing Source One Parts Center guarantees access to genuine Bendix OEM parts, ensuring your commercial vehicle's braking system operates at peak performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
53° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.3 lb
