K076150

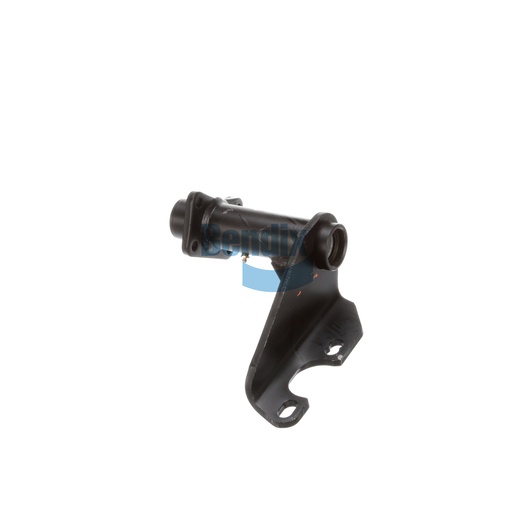

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is engineered to provide essential support for Bendix Foundation Drum Brakes, ensuring strong and reliable performance. With a full arm style and a gusset angle of 40°, this assembly is built to handle the demanding conditions of commercial vehicles. Its nylon bushings offer low-friction operation, leading to reduced wear and longer service life. This bracket is designed with a camshaft bracket angle of 53° CCW, allowing for precise positioning during installation. Weighing just 12.3 lbs, it strikes a balance between strength and lightweight design, making it an optimal choice for maintenance tasks. Source One Parts Center is your trusted provider for genuine Bendix OEM parts, ensuring you get quality components that enhance your vehicle's safety and efficiency.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
53° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.3 lb
