K076093

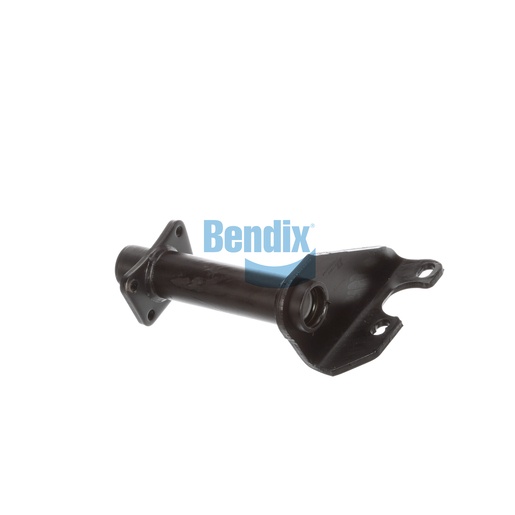

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an integral part of your foundation drum brakes, designed for strength and reliability in demanding environments. This assembly features a full arm style and single gusset design, providing the necessary support to ensure effective brake function. The nylon bushings used for both inboard and outboard positions reduce wear and friction, contributing to the longevity of your braking system. With a camshaft bracket angle of 85° clockwise, it is engineered for precise fitment, allowing for easy installation. Built to endure heavy-duty applications, this bracket assembly is essential for maintaining your vehicle's braking performance. Source One Parts Center is your go-to source for genuine Bendix OEM parts, ensuring that you receive only the best components for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.25
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
85° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13 lb
