K076092

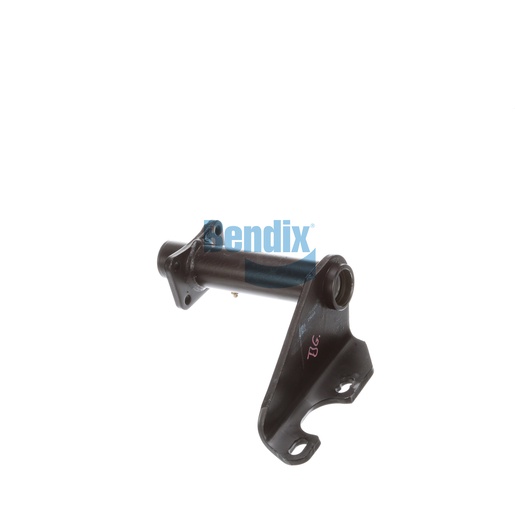

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly by Bendix is an essential component designed to support various elements within the braking system of commercial vehicles. Manufactured in the United States, this assembly offers robust construction that ensures stability and alignment of brake components, contributing to overall system efficiency. Its design is tailored for heavy-duty use, making it perfect for the demands of commercial trucking. By integrating this bracket assembly into your vehicle, you enhance the reliability of your braking system, which is crucial for maintaining safety on the road. This assembly not only helps reduce wear on other components but also minimizes the risk of system failure. Source One Parts Center is your trusted source for genuine Bendix OEM parts, ensuring you receive the highest quality components for your vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.25
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
85° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.8 lb
