K076030

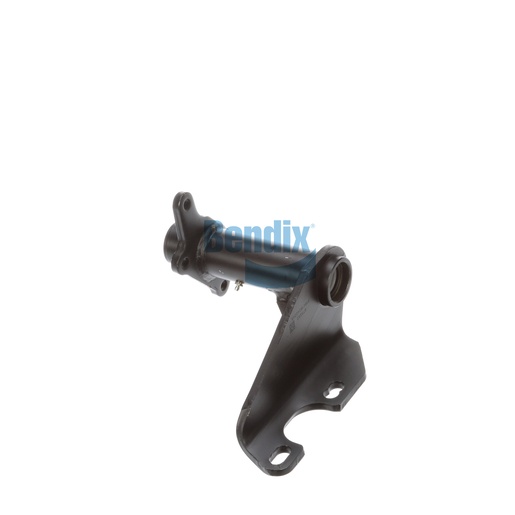

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
This Bracket Assembly from Bendix is a crucial component for your foundation drum brakes, featuring a full arm style and single gusset design that provides robust support for the camshaft and air chamber. With a camshaft bracket angle of 40° CCW and a slack length range of 5.50 inches to 6.00 inches, it allows for precise installation tailored to your vehicle’s specifications. The assembly is engineered with high-quality nylon bushings for both inboard and outboard applications, significantly reducing wear over time. This bracket has been manufactured to meet rigorous quality standards in the United States, ensuring a reliable performance under demanding conditions. For genuine Bendix OEM parts that guarantee your commercial vehicle’s safety and efficiency, Source One Parts Center is the best choice for quality and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Camshaft Bracket Angle
40° CCW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.8 lb
