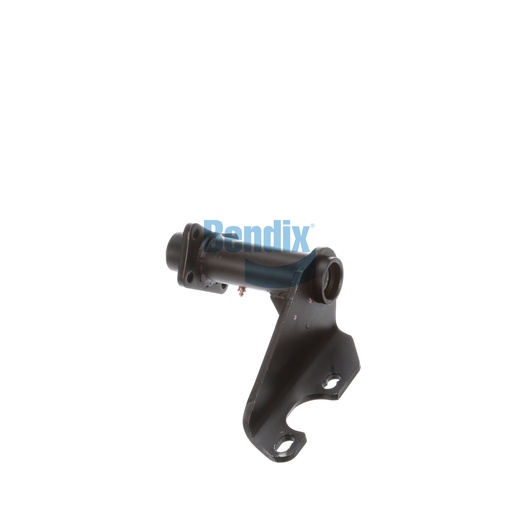

K076008
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Upgrade your vehicle's braking system with the Bracket Assembly from Bendix, a vital component designed for foundation drum brakes. This assembly features a single gusset and full arm style, providing excellent support for air chambers and camshafts. With nylon and bronze bushings, it minimizes wear and extends the life of the assembly, which weighs 12.55 lbs. Its precise engineering ensures a perfect fit for various applications, making installation quick and easy for technicians. This bracket assembly is essential for maintaining optimal braking performance and safety in commercial vehicles. With its reliable construction and thoughtful design, it helps ensure that your braking system operates smoothly and effectively. For those looking for authentic Bendix OEM parts, Source One Parts Center is the best choice, guaranteeing top-notch quality and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
50° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.55 lb
