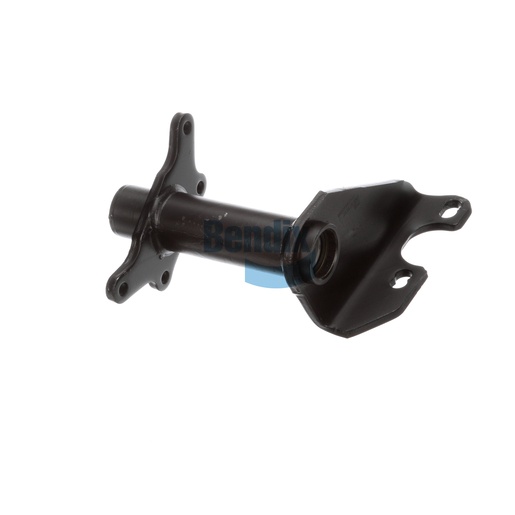

K076007
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is vital for maintaining the integrity and performance of your vehicle's foundation drum brakes. Built with a robust design featuring a full arm style and nylon bushings, this assembly ensures maximum support and minimal wear over time. Weighing 12.9 lbs, it is engineered to withstand the demands of heavy-duty applications while providing ease of installation for technicians. This component plays a crucial role in ensuring the reliable operation of your braking system, making it an essential choice for fleet operators. For high-quality, genuine Bendix OEM parts, Source One Parts Center is the best source, ensuring you receive reliable solutions for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.9 lb
