This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

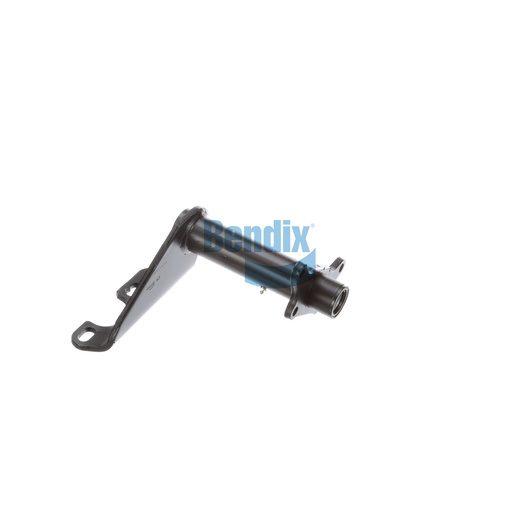

The Bendix Bracket Assembly is engineered for foundation drum brakes, providing necessary support and stability to ensure effective braking performance. Featuring a full arm style and single gusset design, this assembly delivers exceptional strength while remaining lightweight. The nylon bushings used in both the inboard and outboard positions allow for smooth operation, reducing friction and prolonging the life of your braking components. With a slack length that adjusts between 5.50 and 6.00 inches and a camshaft bracket angle of 56° CW, this assembly is adaptable for various brake configurations. Weighing 6.2 kg, it is constructed to endure the rigors of heavy-duty applications. Designed to meet and exceed OEM specifications, this bracket assembly guarantees reliability in your braking system. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring you receive high-quality components that enhance your vehicle's performance and safety.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.57 lb
