K075951

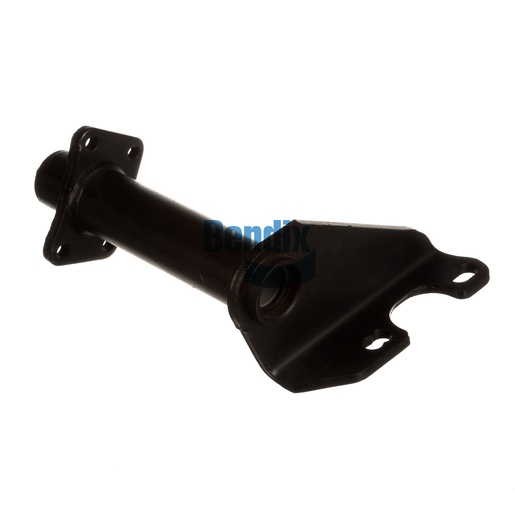

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a crucial component for the effective functioning of your drum brake system in commercial trucks. This assembly boasts a single gusset construction for enhanced strength and durability, supporting various brake components securely. Designed with a full arm style and specific angles for optimal performance, this bracket ensures that your braking system operates smoothly and effectively under all conditions. The nylon and bronze bushings used in the assembly reduce friction and wear, prolonging the life of the braking system. With precise engineering and robust materials, this Bracket Assembly is built to withstand the demanding environments of commercial trucking. Source One Parts Center is your trusted source for genuine Bendix OEM parts, ensuring that you receive high-quality components that keep your vehicle safe and efficient.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Camshaft Bracket Angle
30° CW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.6 lb
