K075950

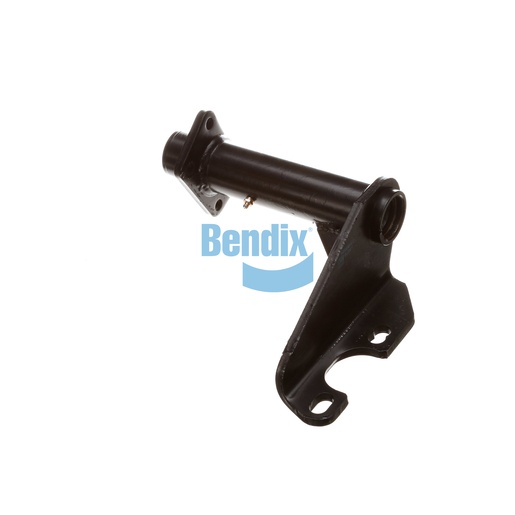

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is engineered to deliver exceptional support for air chambers and camshafts in heavy-duty trucks. With its full arm style and a gusset angle of 40°, this assembly is designed to withstand the intense forces experienced during braking operations. Its combination of nylon and bronze bushings ensures smooth movement while minimizing wear and tear on the braking system. Featuring a camshaft bracket angle of 30° counterclockwise, this assembly is compatible with a variety of truck models, making installation a breeze. Trust Source One Parts Center for your purchase of genuine Bendix OEM parts, where quality and performance come together for your vehicle's needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Camshaft Bracket Angle
30° CCW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.5 lb
