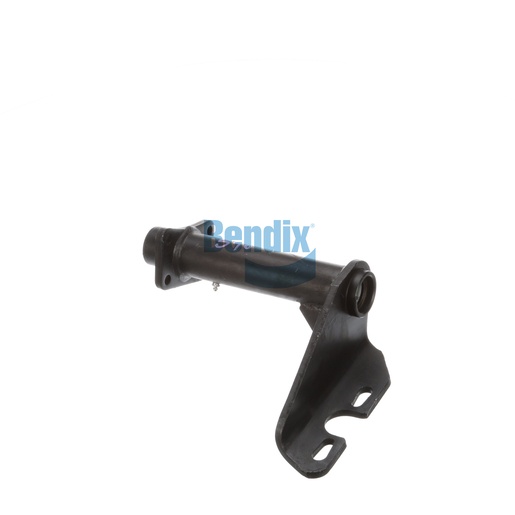

K075848
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is crafted for supporting air chambers and camshafts in commercial vehicles, providing reliable braking performance. This assembly features a single gusset and full arm style, designed for stability and strength under heavy loads. The nylon and bronze bushings reduce friction, enhancing the assembly's durability and lifespan. With a camshaft bracket angle of 63° CCW and an adjustable slack length of 5.50 to 6.00 inches, it ensures precise alignment and compatibility with a variety of truck models. This assembly is essential for maintaining the safety and efficiency of your braking system. Source One Parts Center is the best choice for genuine Bendix OEM parts, ensuring quality and performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.06
Gusset Angle
40°
Length (Slack Length)
5.50 IN
Camshaft Bracket Angle
63° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14 lb
